Switchgear Enclosures

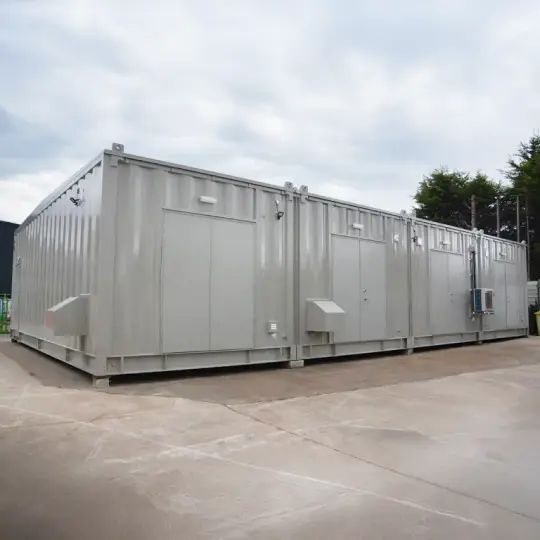

Precision engineered prefabricated modular steel enclosures, purpose designed and manufactured to house LV/HV switchgear and associated auxiliary equipment.

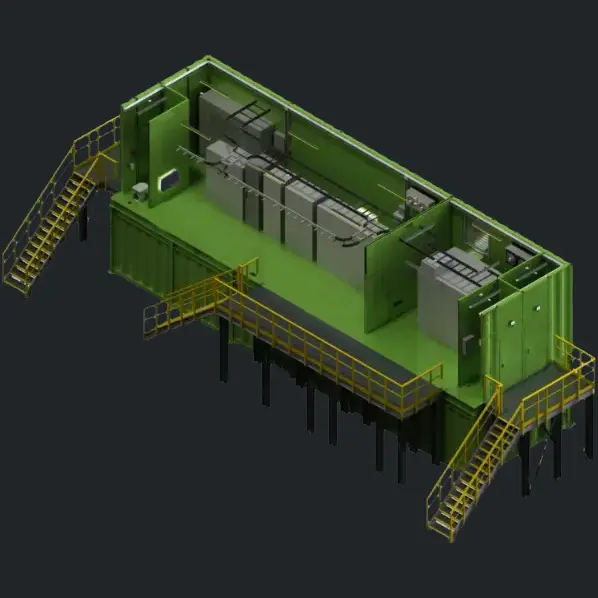

Prefabricated Switchgear Enclosures
LV Distribution
Client-designed depending on the customer’s requirement.
Internal Lighting
Domestic electrics and heating designed in-house to each individual enclosure, taking into consideration specified lighting levels (LUX).
Power Factor Correction
Client-designed depending on the customer’s requirement.
Battery Charger
Client-designed depending on the customer’s requirement.
LV Switchgear
Usually 33kV switchgear specified by the client with floor or wall cable entry.
Platforms & Stairs
Door platforms with stairs & handrails designed to suit site conditions. Can be painted steel, galvanised steel or GRP.
HV Switchgear
Usually 33kV switchgear specified by the client for either floor or wall cable entry.
Cable Tray / Ladder Racking
Designed in-house to carry single or multiple cables internally or externally. Always fully earthed.
Air Conditioning
Designed in-house to meet equipment cooling requirements & installed by 3rd party technicians. Condensers are usually fitted externally on the end of the enclosure(s).
Ventilation Louvres
Weather / mechanical louvres or fire dampers can be fitted as required.
Cooling Fans
Designed in-house to meet equipment cooling requirements and any additional client requirements such as N+1 or N+N
Access Doors
With single or 3-point panic bars, can be full security or fire doors with or without external fittings depending on access requirement.
Fire Alarm / Detection Panel
Simple fire alarms designed and fitted in-house or VESDA-type systems fitted by trained 3rd party technicians.


Auxiliary Equipment Options
Lighting & Small Power
We offer the supply and installation of domestic electrics in all equipment housings to BS 7671 installation standards. ADE can provide single and three phase distribution systems with MCB protection. Standard or LED Lights, emergency lights, external door or compound lighting systems are designed by calculation to make sure all lux requirements are met. Other options include: changeover switches, 230V twin 13 Amp switched sockets with RCBO protection, 110V sockets, generator connection points, transformers, and battery chargers.

HVAC
Natural, force fan or air conditioning can be supplied depending on the client’s requirements. Calculations carried out by ADE can determine which system is right for you. Forced fan ventilation can reduce cooling in the equipment housing by 5 or 10 degrees as most equipment is rated up to 40 degrees celsius. Air conditioning or water cooling systems can also be provided as per the specification. Small wall or ceiling systems can be positioned within the housing whereas larger systems may require their own housing.

Smoke, Fire, & Carbon Monoxide Alarms
A fire alarm system has a number of devices working together to detect and warn people through visual and audio appliances when smoke, fire, carbon monoxide or other emergencies are present. These alarms may be activated automatically from smoke & heat detectors or may also be activated via manual fire alarm activation devices such as call points or pull stations. Alarms can be either motorised bells or wall mountable sounders or horns. They can also be speaker strobes which sound an alarm, followed by a voice evacuation message to alert nearby personnel. Suppression systems can be linked to any alarm system to extinguish the fire.

Louvres & Dampers
We manufacture all types and sizes of louvres to cover the client’s air flow & cooling requirements. Louvre designs include: weather protective, single & double bank acoustic, sand trap, stainless steel for coastal applications. Motorised or slam shut dampers can be supplied when required.

Frost Protection & Heating
Equipment housings will be fitted with appropriate forms of heating to keep the equipment frost-free and ready to operate, including fan heaters, convector heaters, wall heaters, tube heaters, storage heaters. Hazardous area heaters for specialist (ATEX) modules, controlled by thermostats that can also be provided and linked to external monitoring systems.

Dehumidifiers
Put simply, a dehumidifier reduces the level of humidity in the air to leave the environment feeling more comfortable and, as a rule, healthier. Not just for use in the home & offices, equipment housings which house sensitive electrical equipment need to take moisture into consideration when designing either natural or force fan ventilation systems.

Intruder Alarms
Intruder alarms using door activation monitors can be installed in most prefabricated modules. PIR motion protection can be linked to this alarm to give a fully guarded environment. Volt-free sensors will raise an audible alarm and/or contact site control alarm systems or emergency services.

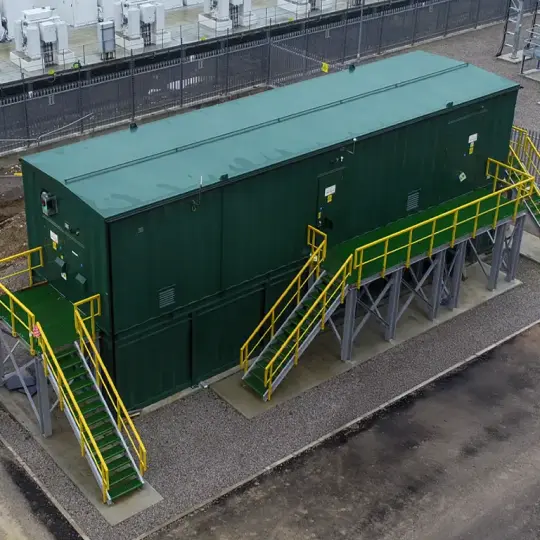

Substructures, Platforms, & Stairs
Substructures can protect housings built in areas prone or susceptible to flooding by raising the floor of the housing anywhere from a few hundred millimetres to several meters depending on the client’s needs. Raised substructures can also be utilised to create a cable basement without the need to dig into the ground and create an expensive cable trench.

Stackable Units
With land being expensive, double or triple-stacked housings or containers are an ideal solution to minimise the amount of space required on site. We manufacture ISO and bespoke enclosures which can utilise corner castings to stack housings simply and safely.
