Acoustic Enclosures & Containers
Bespoke sound-attenuated enclosures designed to reduce the environmental noise impacts of critical industrial machinery including generator sets and pumps.

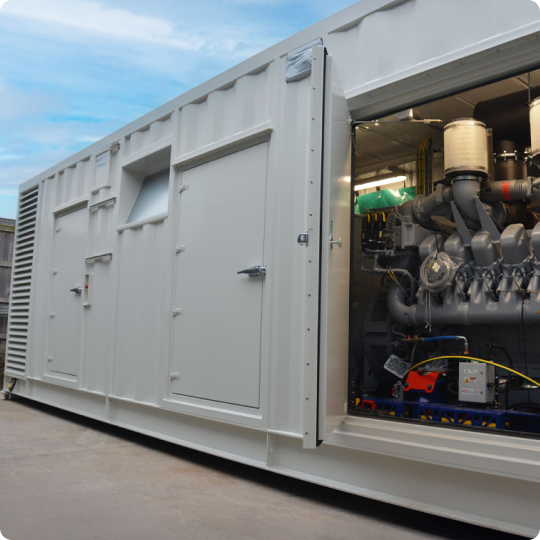

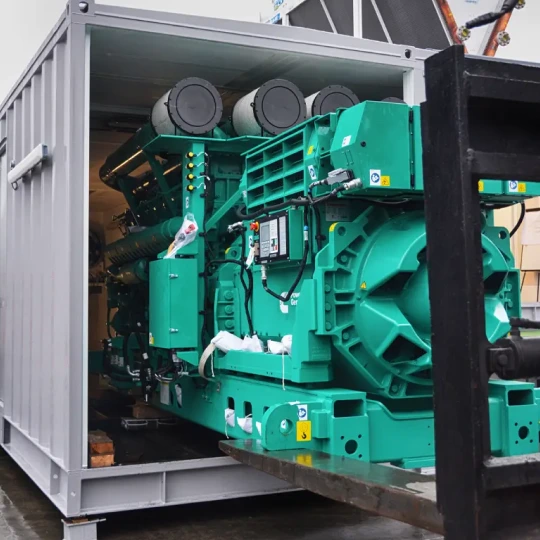

Acoustic Generator Enclosures
Remote Radiator
Radiator fans can be fitted internally or externally depending on requirements, they can be coupled to the discharge attenuator through a canvas connection preventing re-circulation and ensuring a positive air-flow through the enclosure.
Door Canopy
From a practical perspective, having a doorway canopy overhead means you’re protected from the elements as you enter/leave.
Access Doors
Access Doors – Single, double or maintenance access doors. Fire & security rated available.
Pipework (Gas)
Easy access to gas pipe connections and ports (for gas generators).
Cable Box
Cable Link Box – A cable box provides an easy load connection point for SWA cables to be attached and converted into more flexibile Ho7 cable inside the container.
Fire Alarm Beacon
Fire Alarm Beacon – Fire Alarm Beacons are an ideal way of giving a visual warning that the fire alarm system has been triggered. Our fire alarm beacons are manufactured to the highest quality conforming to British standards, ensuring you, your business and your team are quickly alerted in the event of fire.
Lifting Eyes
Lifting eyes (occassionally referred to as lifting lugs). Designed to connect to the top, side or bottom of an acoustic enclosure so that the unit can be lifted by an overhead crane.
Access Ladder
Provides easy access to the roof for maintenance operations.
Exhaust/Silencer
Bespoke exhaust systems to guide exhaust gases away from the engine can be cylindrical or box-shaped based on project restrictions. Box-shaped exhausts can be recessed into the frame for reduced height. Both cylindrical and box exhausts can be place on the roof or side of an acoustic enclosure. Smaller engine-sized units can incorporate an exhaust inside the frame for a reduced overall footprint.
Louvres
Multi-functional acoustic louvres allowing airflow throught the unit whilst simultaneously reducing noise created by the generator heard outside the enclosure. Louvres are available in a wide-range of standard modular sizes so performance requirements can be met.
External Fuel Tanks
Bespoke external fuel tanks provide an increased operational run-time in a variety of shapes and sizes to counter spatial restrictions.
External Lighting
Provides focused lighting to key areas of the container in low-light conditions.
Emergency Stop
An emergency stop button wired in series with the control circuit of the generator. Pushing the emergency stop button will break the circuit of the genset and remove the power supply that keeps the circuit energised.

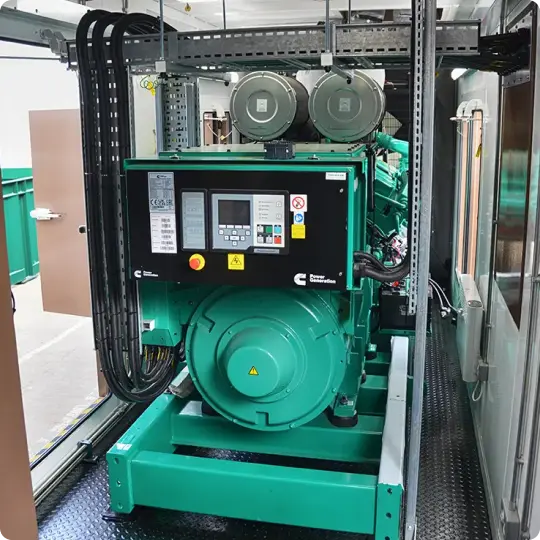

Electrical Equipment & Enclosure Fit-Out

Acoustic & Ventilation Features
Acoustic Doors
Standard size and bespoke-built single and double acoustic doors with a wide range of lock, latch and handle mechanisms are available for all our enclosures and containers in stainless steel, galvanised steel, or aluminium options. Our variety of doors can be coated with polyester powder to match adjoining louvres, and our louvred doors can be fitted with bird guards and insect meshes if required.

Acoustic Louvres
Our acoustic louvres are multi-purpose, permitting air to flow, whilst attenuating the noise from the generator heard outside the enclosure. Louvres are available in an array of standard modular sizes, meaning that a wide range of performance requirements can be met. By using our acoustic louvres, it overcomes architectural consistency issues, especially where space is limited.

Motorised/Gravity Louvres
Our gravity louvres are designed to counteract any equipment that may be sensitive to dust, by using automated pressure relief blades. Our motorised louvres automatically provide air that is accessible quickly from an intake after the generator has been started. One of the advantages of having motorised louvres is the ability to create an air-tight enclosure that impedes the progress of any potential fire.

Weather Louvres
In harmful environments where adverse weather can create a large amount of dust, our fixed-blade steel weather louvres can offer that extra necessary protection to the enclosed generator or equipment, allowing sufficient air flow (in both supply and return directions) for the machinery to function whilst protecting from dust, sand, rain, snow, hail and other extreme weather conditions.

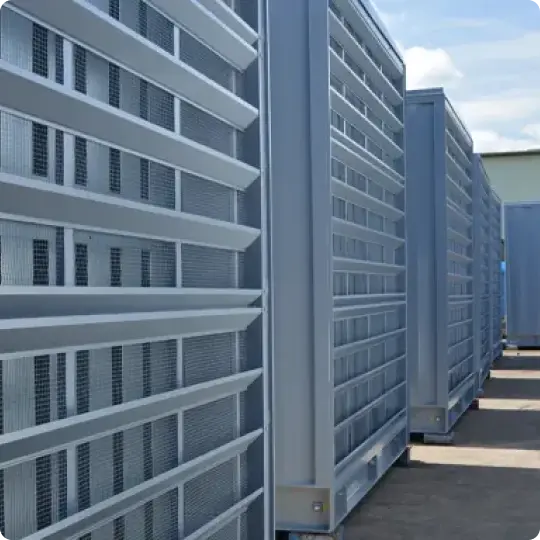

Splitter Attenuators
Designed and manufactured to specification to achieve the required noise level reduction for industrial generator sets and other high noise source equipment/machinery. There are no restrictions for where an attenuator can be installed, and when space is a major factor, we can find a flexible solution for your precise requirements with a high quality, professional manufacture standard and installation.
